Core Performance Boost Setting: Speed vs Power Consumption in Home Lab

I have built up a couple of Ryzen 9 7945HX home server builds over the past few weeks and have experimented a bit with the BIOS settings and things that ones may be interested in for home lab purposes. There is an interesting setting that you may want to experiment with as well and that is the core performance boost setting on your motherboard. What is the core performance boost setting? What does it do and what are the pros and cons of disabling it?

My experimentation with Core Performance Boost (CPB)

One of the things that I wanted to experiment with is power consumption with the Ryzen 9 7945 HX processor. I noticed that I saw some fairly high power measurements with the 7945HX processor. So, I wanted to find the sweet spot for power and performance.

One of the most effective settings impacting the balance in AMD Ryzen processors for power and performance is the Core Performance Boost (CPB).

For my recent builds using the Minisforum BD795M and 795I SE motherboards, both equipped with the AMD Ryzen 9 7945HX processor, I found that disabling CPB cut the power draw in half. However, this setting also comes with notable performance trade-offs.

What is the Core Performance Boost setting?

Core Performance Boost (CPB) is a feature that dynamically increases the clock speed of CPU cores beyond their base clock when thermal and power conditions allow. This is AMD’s version of Intel’s Turbo Boost technology for comparison sake.

Below is the CPU Common Options found in the Advanced settings of the Minisforum BD795M motherboard.

By default, CPB allows the processor to boost core frequencies of the CPU cores significantly higher than the base clock speed. It does this based on CPU demands and power headroom. This feature can significantly boost performance, especially with CPU-intensive tasks.

CPB directly affects Power Consumption

One of my findings from my Minisforum 7945HX-based builds was the massive impact CPB has on power consumption. Note the below:

• CPB enabled: The system is allowed to burst up to much higher frequencies when under load, with the tradeoff being it consumes much more power.
• CPB disabled: The CPU stays at its base clock speed. This will reduce power consumption of the CPU substantially. In my case, disabling CPB cut power draw by 50%.

I think for home lab environments, where you may have a server that is running 24/7/365, this may be a viable option that many may consider as it prevents the CPUs from bursting frequencies and power draw around the clock.

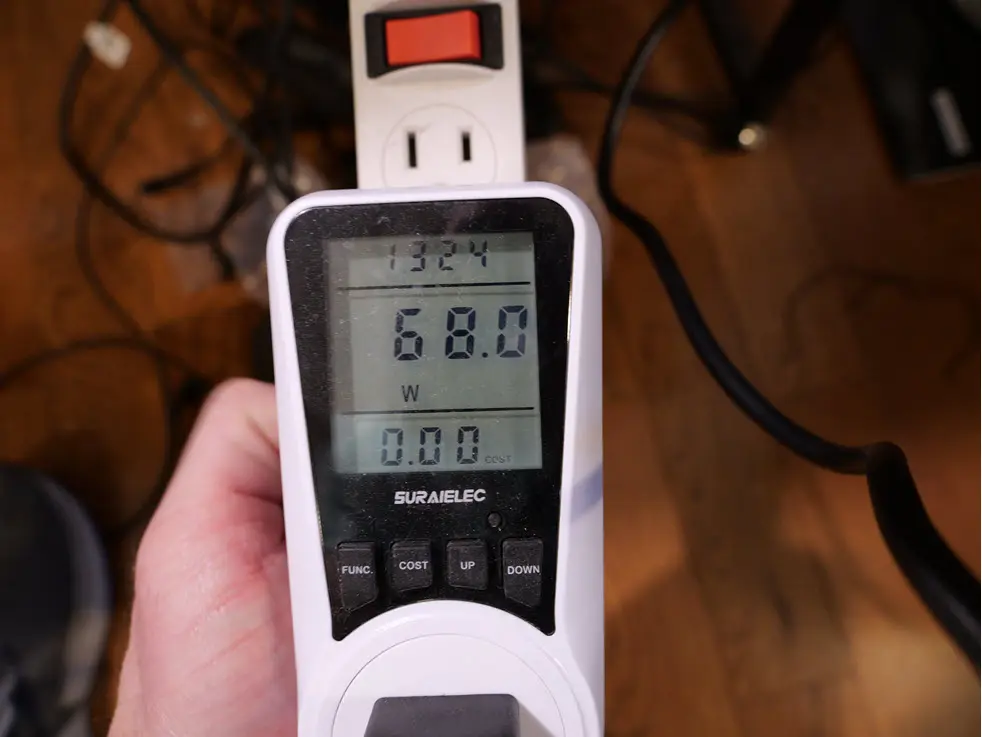

With core performance boost off, the 7945hx processor never consumed more than 68 watts and this seemed to be a hard ceiling for the CPU running all cores at the base clock speeds.

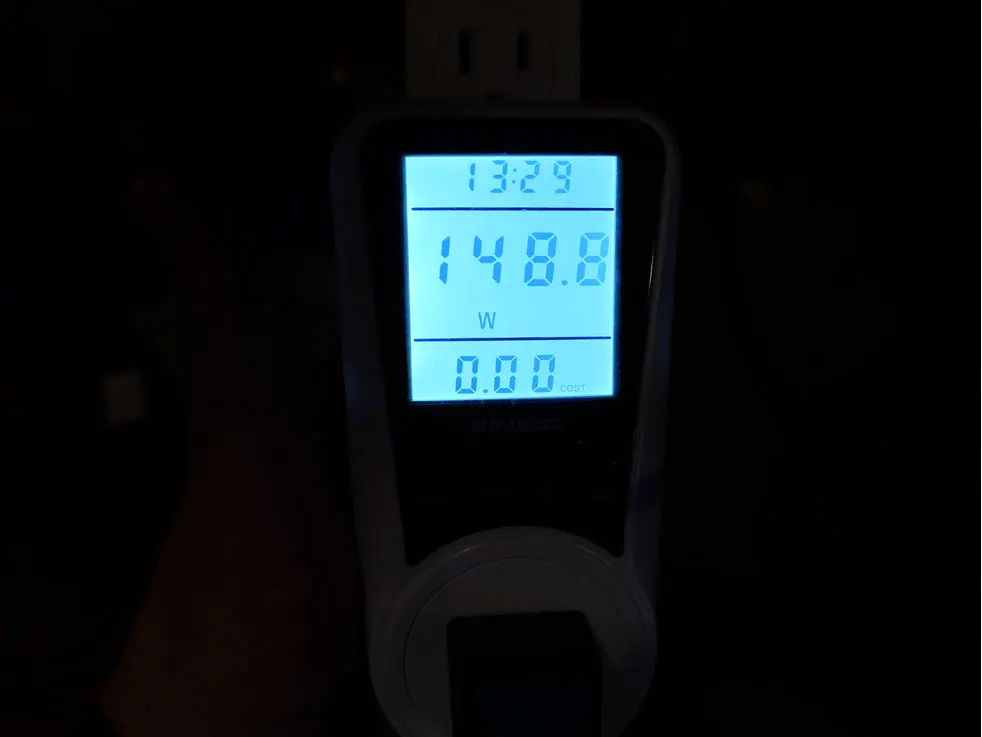

With core performance boost on and running the CPU at 100%, power draw jumps significantly and hit a draw of 148.8 watts.

Check out my video covering my Proxmox Home Server Build in 2025:

Pros and Cons of Enabling CPB

Let’s talk about the pros and cons of enabling or disabling this setting.

Pros of Enabling CPB

1. Higher Performance – As mentioned the setting dynamically boosts clock speeds. This will significantly improve performance in multi-threaded and single-threaded workloads.
2. Better Responsiveness – Applications that benefit from bursty processing power like virtualization, gaming, and video encoding will benefit from faster clock speeds.
3. Optimized for Workloads – Tasks like running container, data processing, or database queries, will benefit from the higher frequencies and will benefit from the boosted clock speeds.

Cons of Enabling CPB

1. Higher Power Consumption –Much higher power draw, 2X.
2. Higher Heat Output – More power means more heat which means that you will need to account for this in your home lab space and cooling solutions, especially in warm summer months
3. Potential CPU Longevity Impact – Running at higher voltages and temperatures may lead to lower lifespans for your CPU

Pros and Cons of Disabling CPB

Pros of Disabling CPB

1. Significant Power Savings – My tests showed a 50% reduction in power consumption when CPB was disabled.
2. Lower Heat Output – Reducing CPU frequency means you will have less heat-related stress on the CPU
3. More Predictable Performance – Performance will consistently stay within the base clock speed of the processor which means performance is more predictable.

Cons of Disabling CPB

1. Lower Performance – The CPU stays at its base clock speed. This will reduce performance for CPU-intensive workloads
2. Longer Task Completion Times – Tasks that need lots of CPU will take longer
3. Not Ideal for Dynamic Workloads – Bursty processing tasks like VMs and containers will have definite perfromance limitations compared to having the setting turned on

When Should You Disable CPB?

You may consider disabling the feature if the below is important to you and your home lab:

• If you would rather have power efficiency over absolute performance – If your home lab runs 24/7 and you want to reduce power consumption as much as possible
• If cooling is a concern – Lower power draw will ultimately produce less heat in your home lab environment, which in turn means less cooling
• For non-CPU intensive workloads – If your workloads don’t need high clock speeds, base clock operation is usually going to still be good.

When Should You Enable CPB?

Leaving CPB enabled is ideal for:

• Non 24/7/365 home labs – If you don’t plan on running your home lab 24/7/365, the extra power draw for shorter periods of time is probably not going to be as noticeable on your electricity bill or cooling
• High-performance needs – Running apps that require burst processing power
• Virtualization-heavy workloads – If your home lab is running multiple VMs or Kubernetes clusters, higher clock speeds will improve performance. However, I will detail this more below, but I haven’t seen an issue with running at base clock speeds, etc with this turned off with these types of workloads
• Gaming or multimedia tasks – For sure, if you are placing an AMD board and processor with CPB, you will want to enable this as you will definitely see benefits to your overall performance with the setting enabled.

My experience with Core Performance Boost turned off

I think more will be interested in my experience with the setting turned off than on, since leaving it on is the default and just simply allows the processor to operate at fully capacity. So far, with the setting turned off, I haven’t noticed any huge issues in the home lab. For me, the 7945HX processor is such a huge upgrade from where I was before (older Xeon-D processors) that the perfromance is leaps and bounds above where it was.

I think most running the setting turned off in a lab environment are not going to notice any terrible side effects from leaving this off, especially if you are not benchmarking apps or doing things where you can actually measure the performance. For most self-hosters your apps are going to perform as you would expect. This is my humble observation from experimenting with this over the past few weeks.

Wrapping up

Everyone’s needs and wants are different in a home lab environment. Some will not want to think they have hamstrung their perfromance and investment in that performance by turning off a setting that will definitely impact the top-end performance of what your CPU can do. However, for others like myself, turning off the setting means that I will dramatically save on my electricity bill since I run the lab 24/7/365. Let me know in the comments if you too have experimented with power draw and other settings for AMD-based CPU/boards in your home lab and what your thoughts are.
